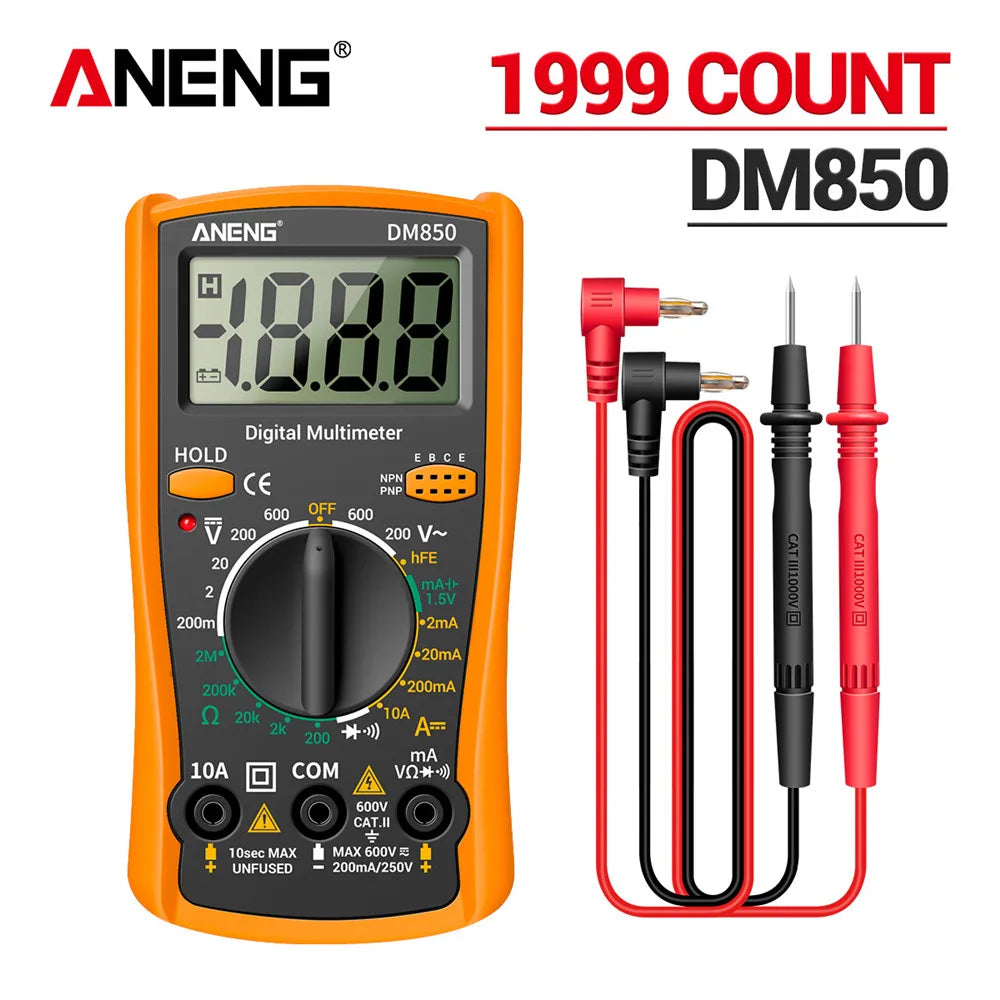

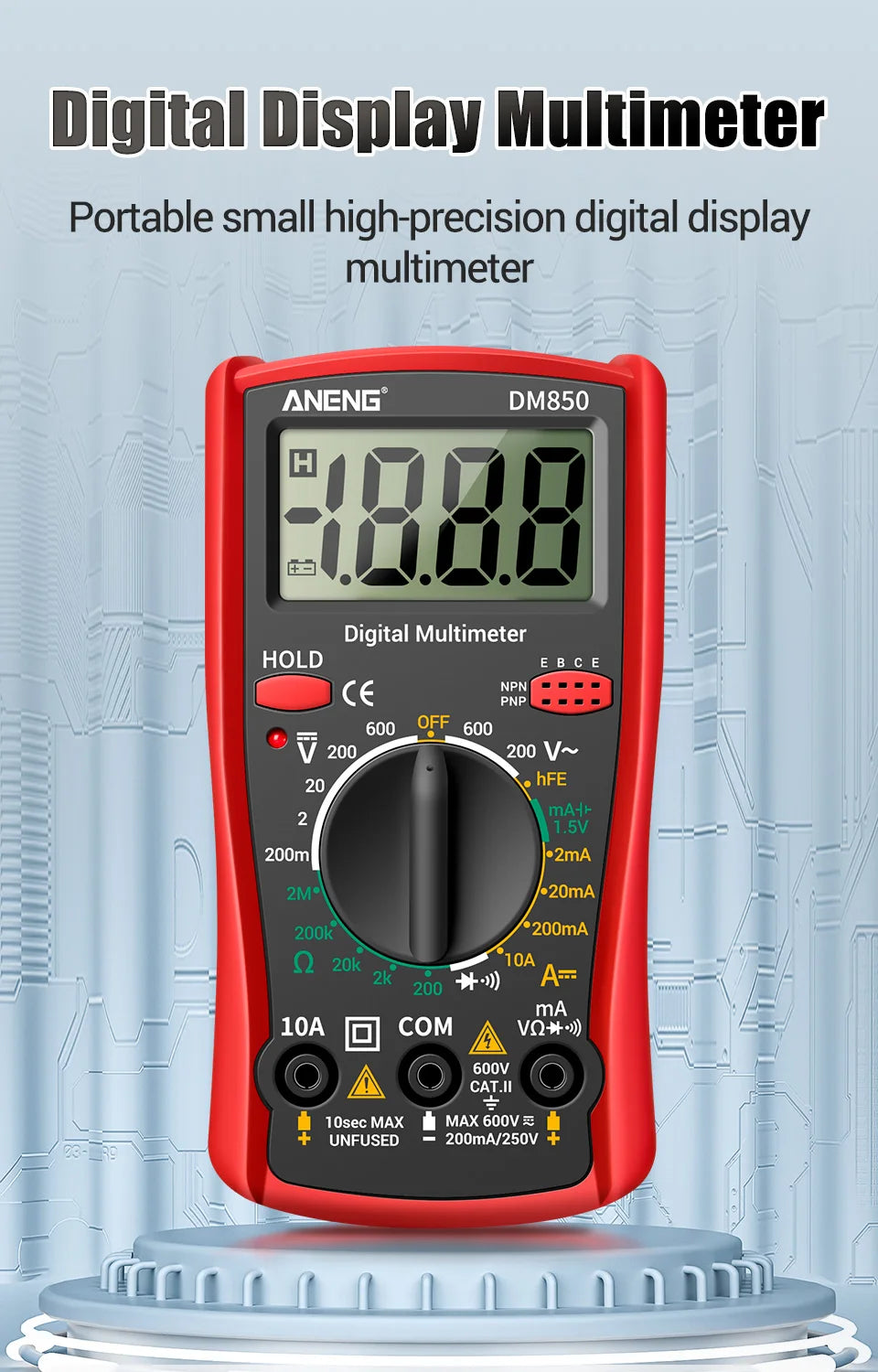

ANENG DM850 Digital Multimeter Automatic Professional 1999 Counts Auto AC/DC Votage Tester Ohm Current Ammeter Detector Tool
ANENG DM850 Digital Multimeter Automatic Professional 1999 Counts Auto AC/DC Votage Tester Ohm Current Ammeter Detector Tool
Couldn't load pickup availability
SPECIFICATIONS
AC Current: /
AC Voltage: 200V/600V
ANENG Model: DM850
Battery Included: No
Brand Name: ANENG
Certification: CE,UL
Choice: yes
DC Current: 200uA/2000uA/20mA/200mA/10A
DC Voltage: 200mV/2000mV/20V/200V/600V
DIY Supplies: Electrical

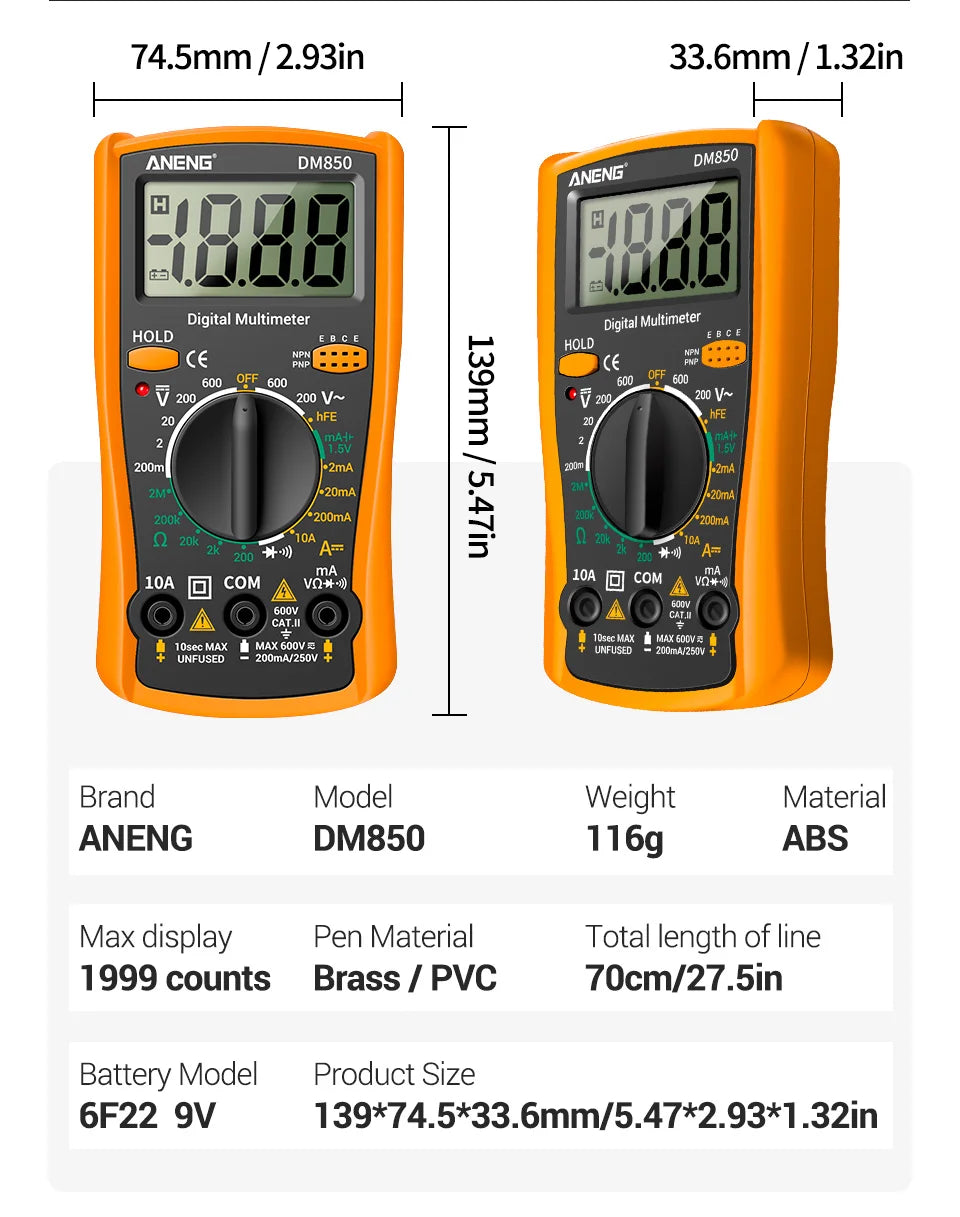

Dimensions: 139*74.5*33.6MM
Display Type: Digital Display
Hign-concerned Chemical: None
Is Smart Device: No
Measuring Capacitance Range: Eletrician Tool
Measuring Inductance Range: 45Hz~450Hz
Measuring Resistance Range: 200/2000/20k/200k/2000k
Model Number: ANENG DM850 Multimetro
Operating Mode: Manual range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
ANENG DM850
Eletric Digital Professional Multimeter
General: （Not include battery）

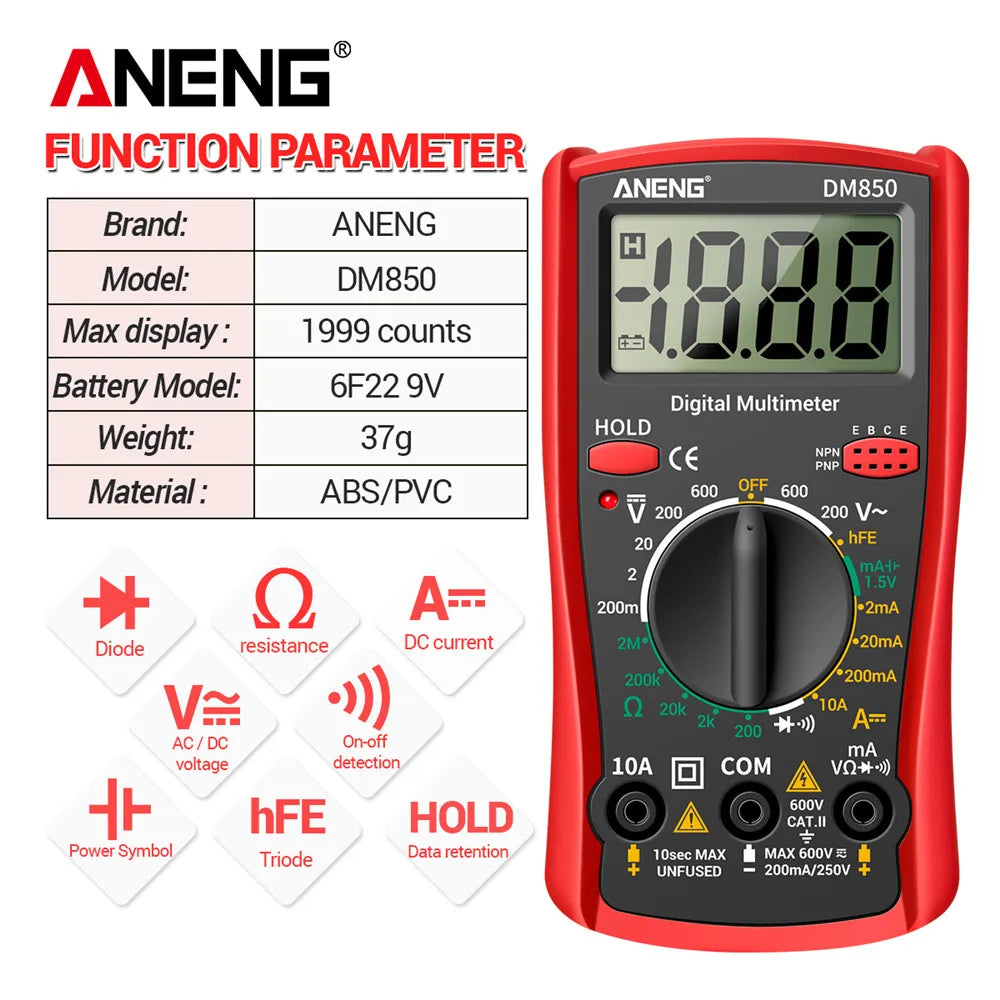

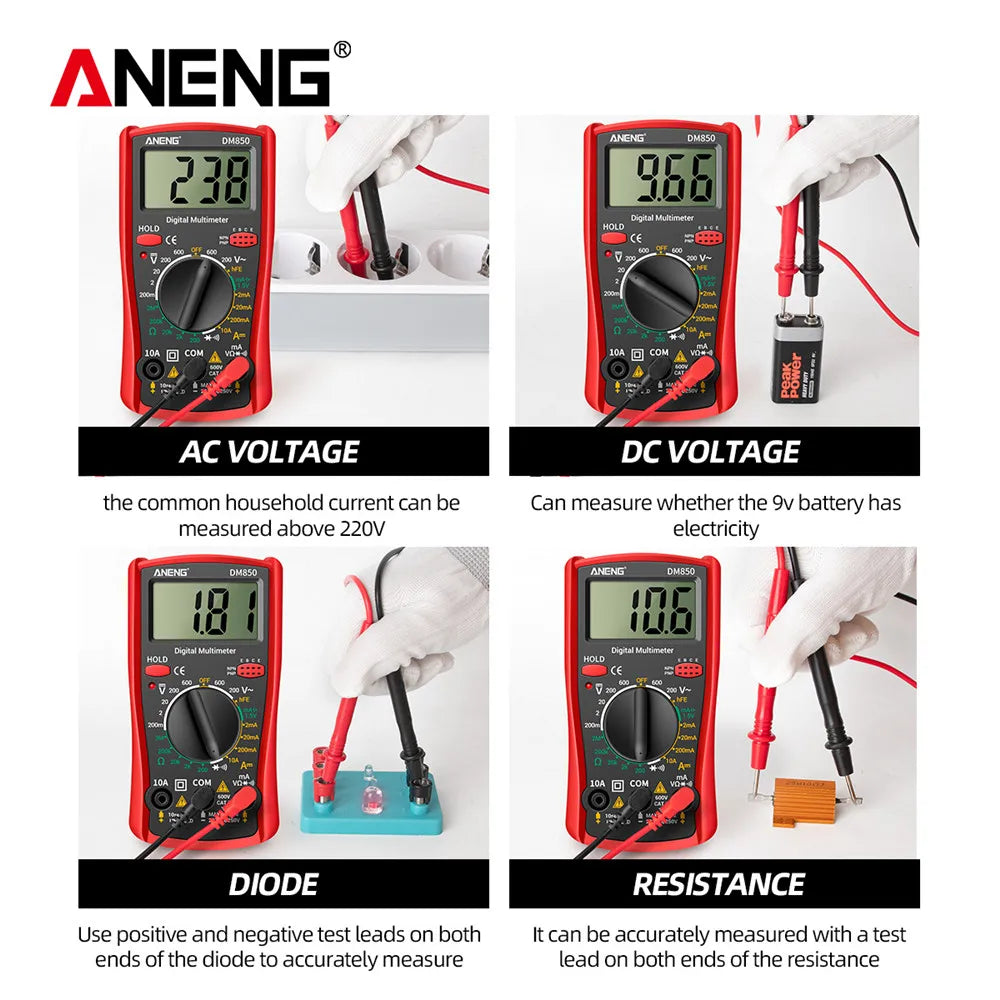

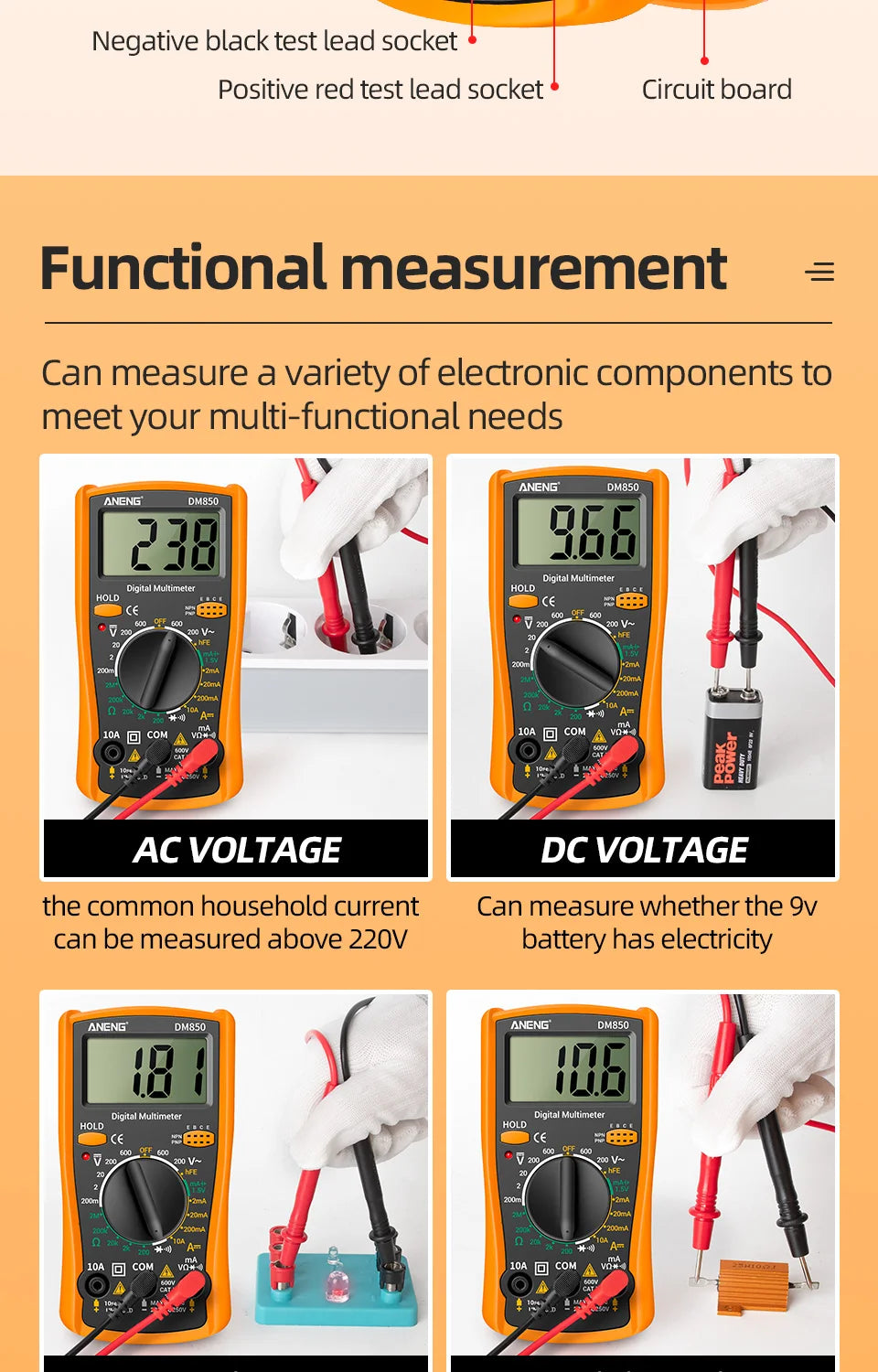

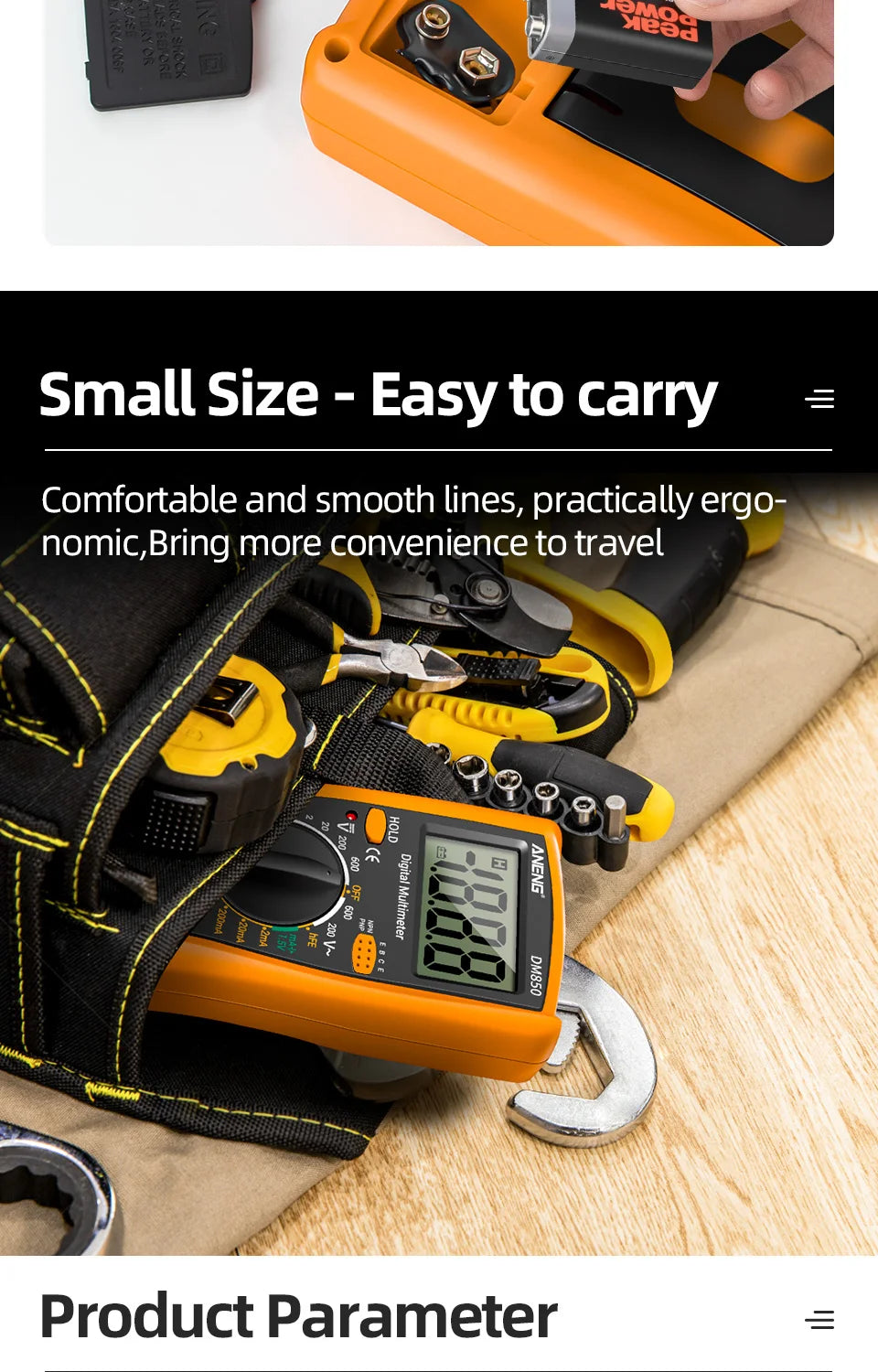

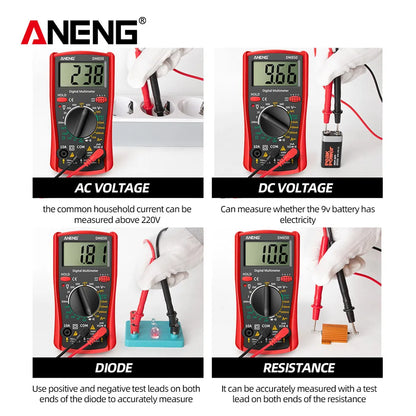

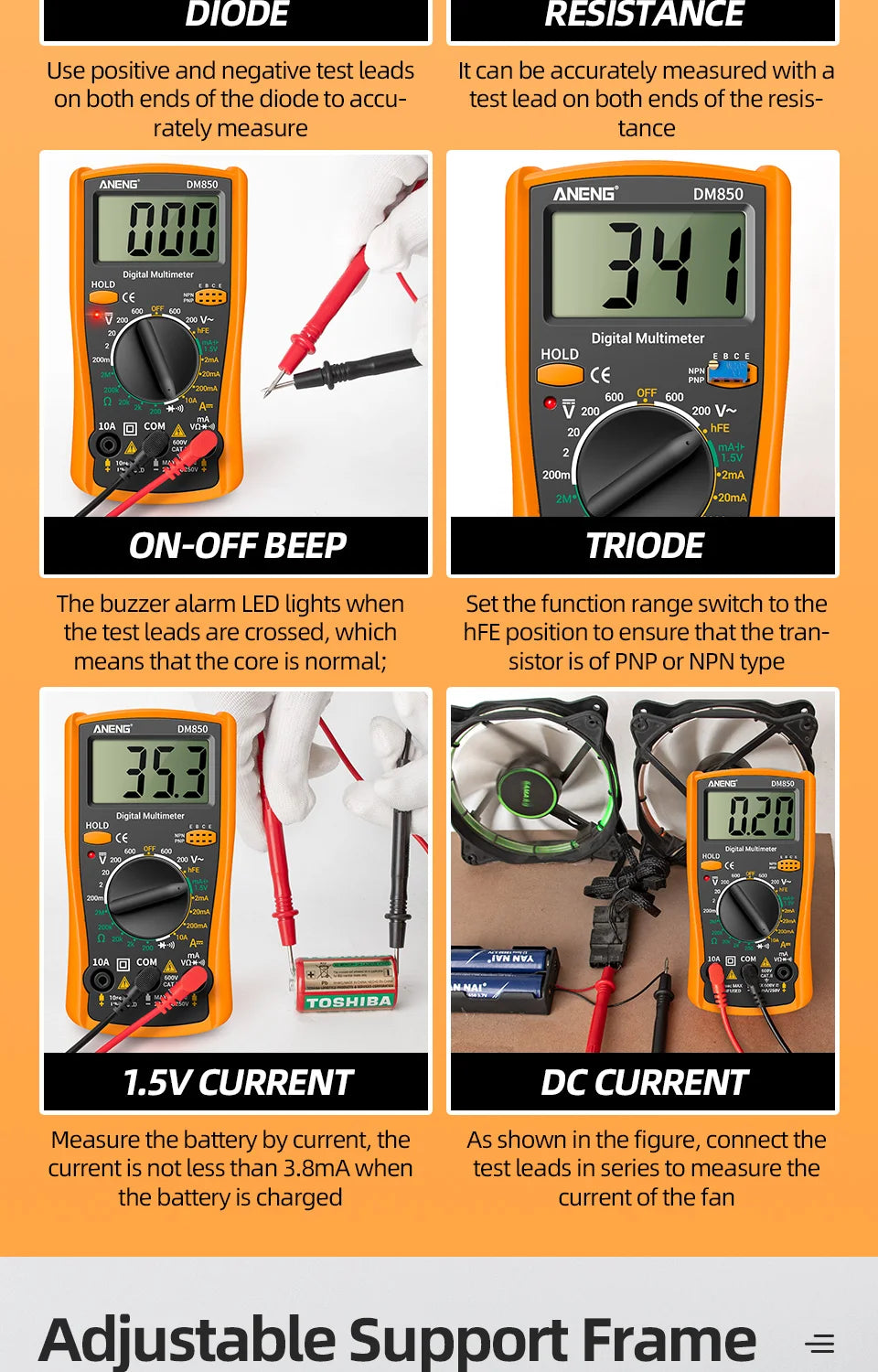

This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
Function |
Range |
Accuracy |
DC Voltage |
200mV |
+-(2% of rdg+3D) |
2000mV/20V/200V |
+-(2% of rdg+5D) |
|
600V |
+-(2.5% of rdg+5D) |
|
AC Voltage |
200V/600V |
+-(2% of rdg+10D) |
Frequency Range |
45Hz~450Hz |
|

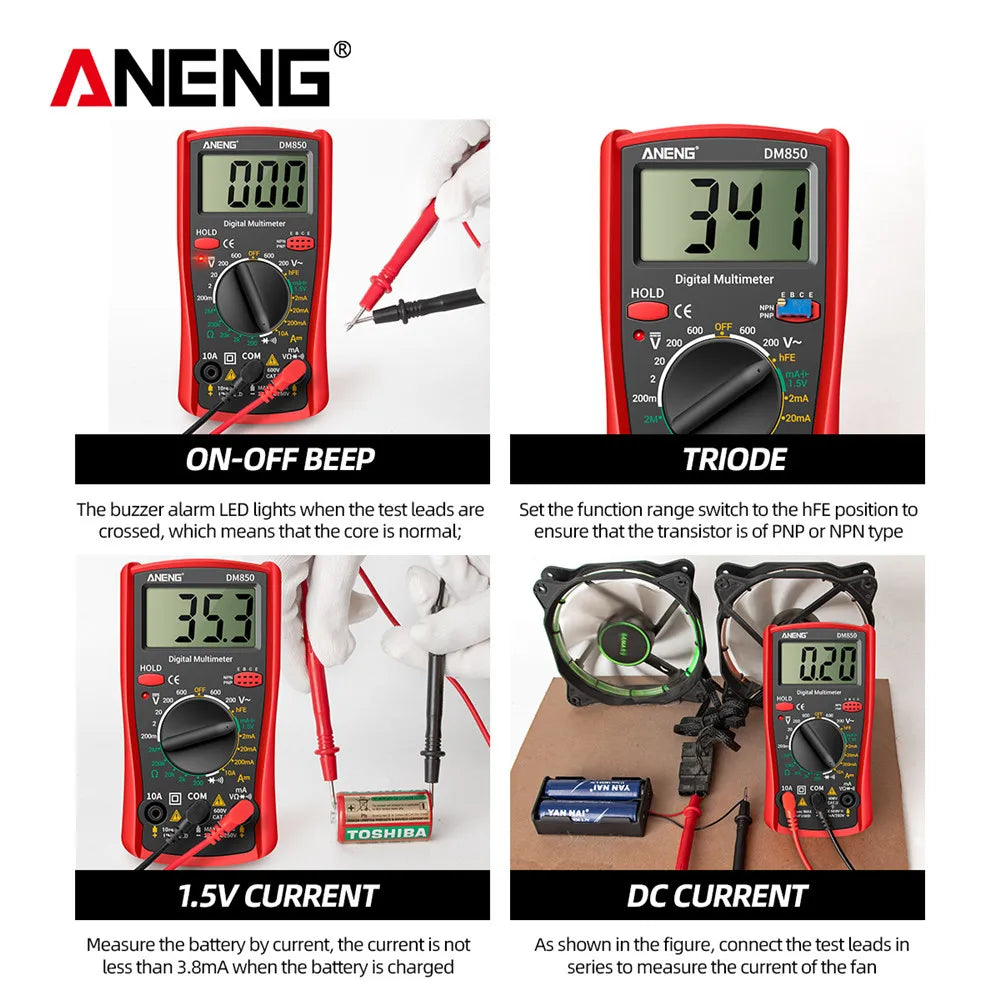

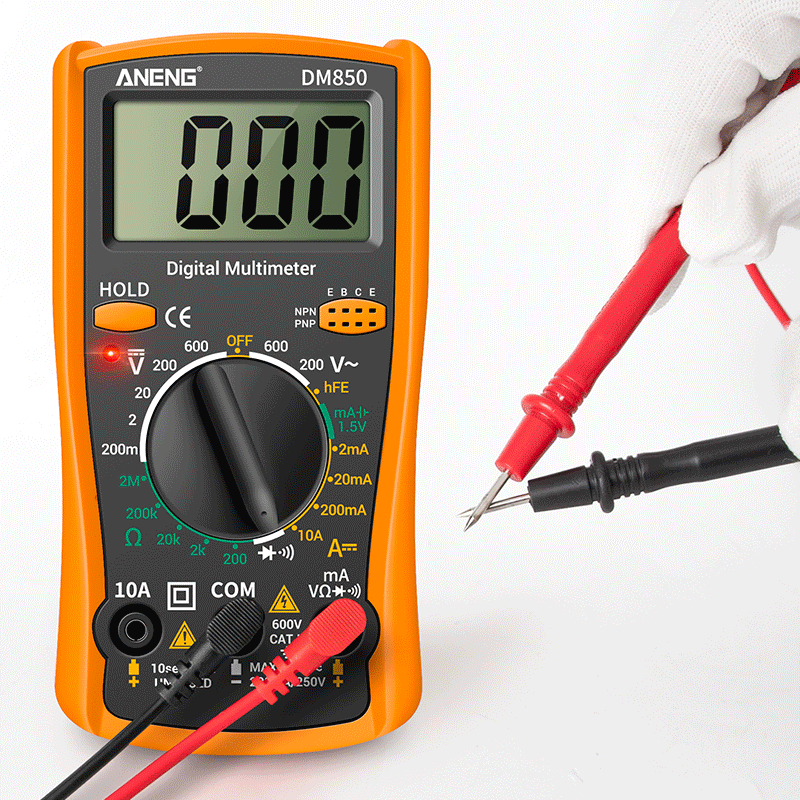

Audible Continuity Test |
Yes |
|
DC Current |
200uA/2000uA/20mA |
+-(2% of rdg+2D) |
200mA |
+-(2.5% of rdg+2D) |
|
10A |
+-(2.5% of rdg+10D) |
|
Resistance |
200Ω |
+-(2.5% of rdg+10D) |
2000Ω/20kΩ/200kΩ/2000kΩ |
+-(2.5% of rdg+4D) |
|
Overload Protection |
15 second |

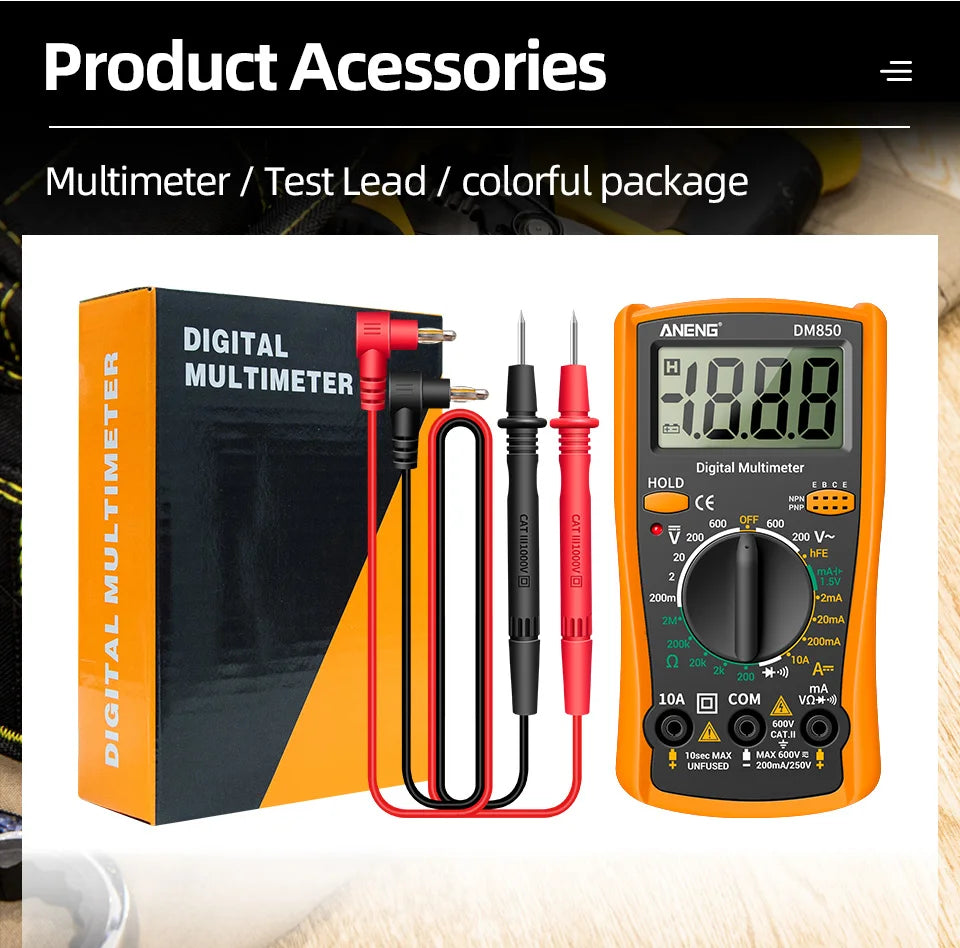

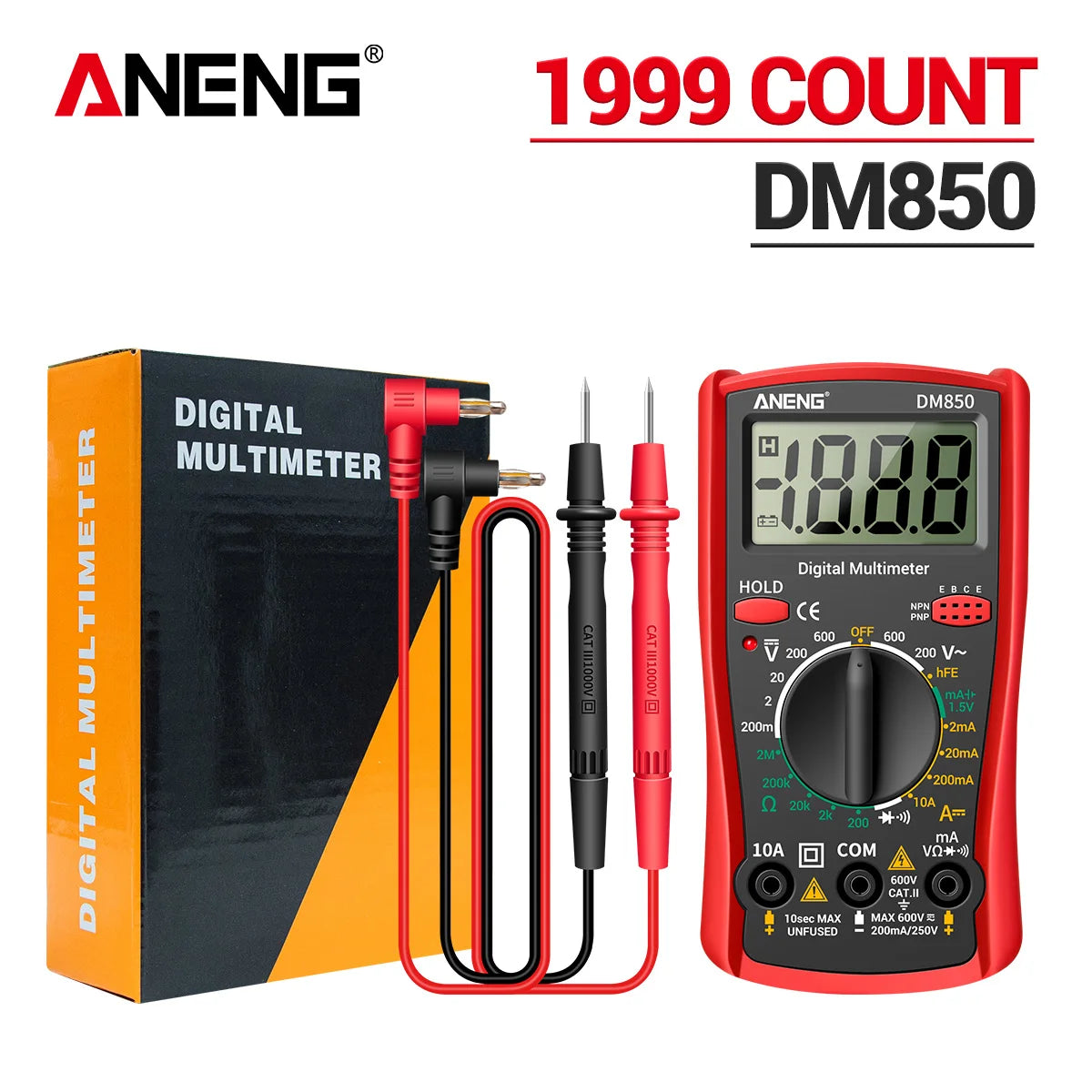

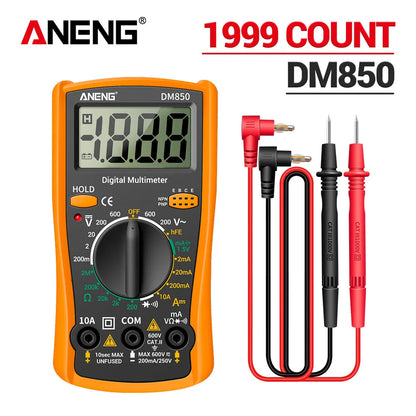

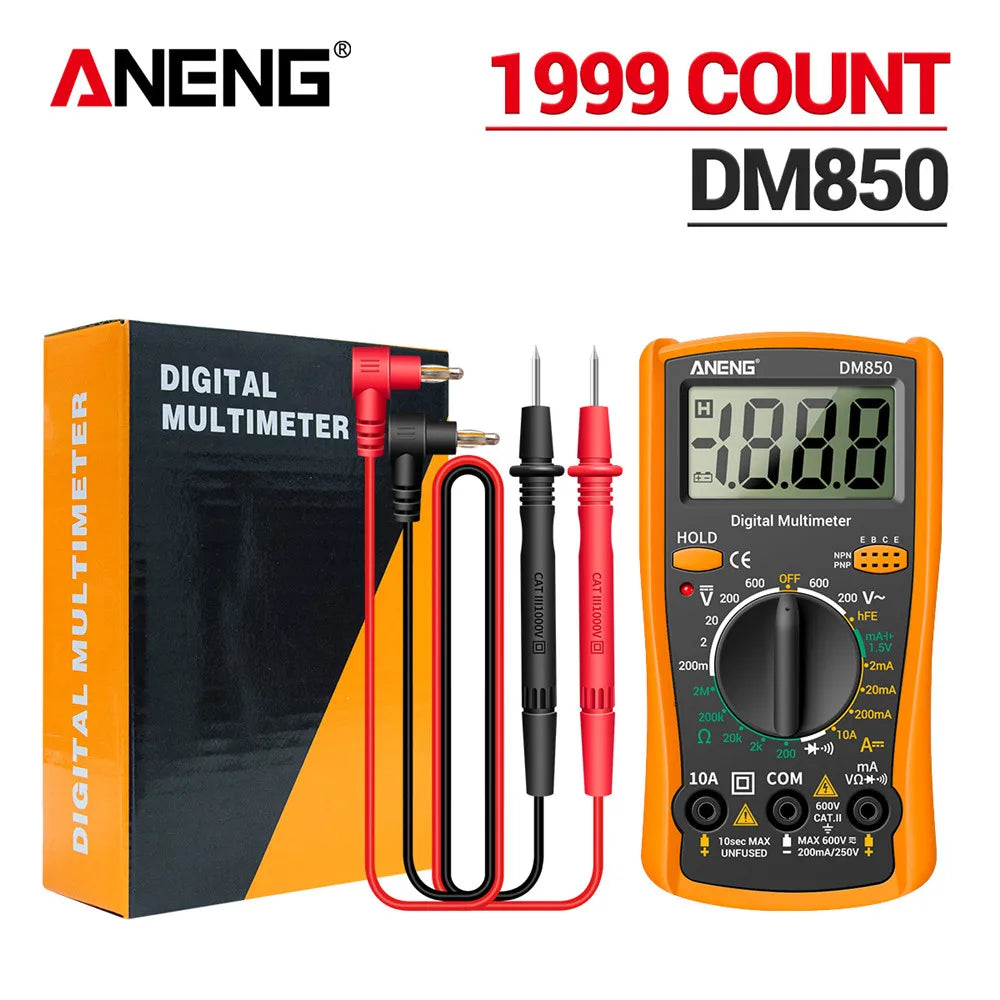

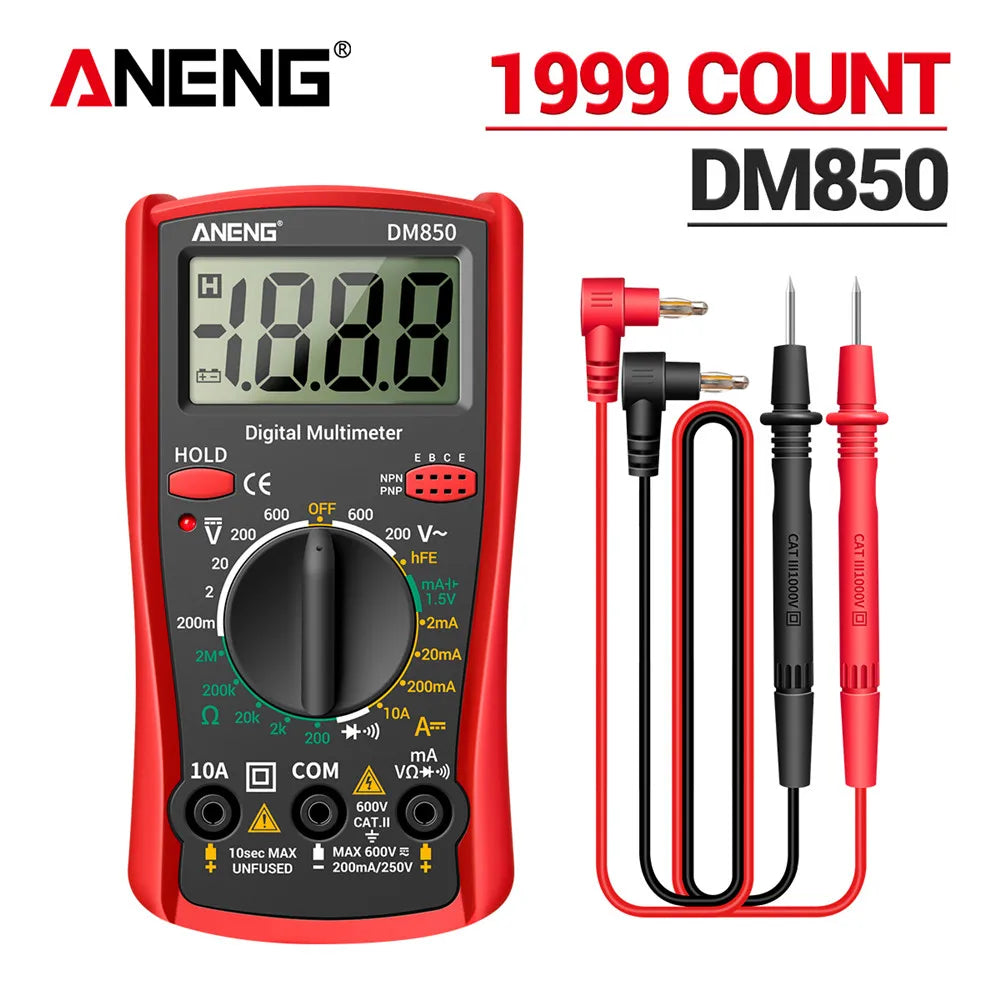

Package:（Without Battery）
1*Multimeter
1*test leads
1*manual
1*outer packing box(by option)
