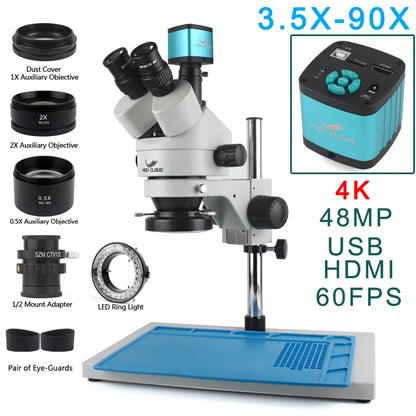

3.5X-90X Continuous Zoom Stereo Trinocular Microscope + 0.5X 2X Auxiliary Objective Lens 48mp 55mp 4K HDMI USB Microscope Camera

3.5X-90X Continuous Zoom Stereo Trinocular Microscope + 0.5X 2X Auxiliary Objective Lens 48mp 55mp 4K HDMI USB Microscope Camera

$395.00 USD
$400.00 USD $395.00 USD
Sale Sold out
Color
Ships From

SPECIFICATIONS

Battery Included: No

Brand Name: HIGH CLOUD

Camera: 2K 4K 48MP 38MP 1080P USB HDMI Microscope

Certification: None

Drawtube: Trinocular

Eyepiece: WF10X/20mm large field

Features: High Definition,Digital

Fit For: PCB Soldering Phone Repair PCB inspection

HIGH CLOUD Model: 7X-45X

Head function: 360 degree rotable

Hign-concerned Chemical: None

Illuminator: 56 pcs LED Ring Light

Is Smart Device: No

Magnification Ratio: 500X & Under

Material: Aluminum

Model Number: 7X-45X

Origin: Mainland China

Output interface: HDMI USB VGA

Theory: Stereo Microscope

Working height: 2X - 40mm 1X - 100mm 0.5X - 165mm

Zoom magnification: 7-45X 7x-90x 3.5x-45x 3.5X-90X



key Feature:
3.5X-90X zoom magnification power with crisp sharp images
Sturdy all-metal pillar stand

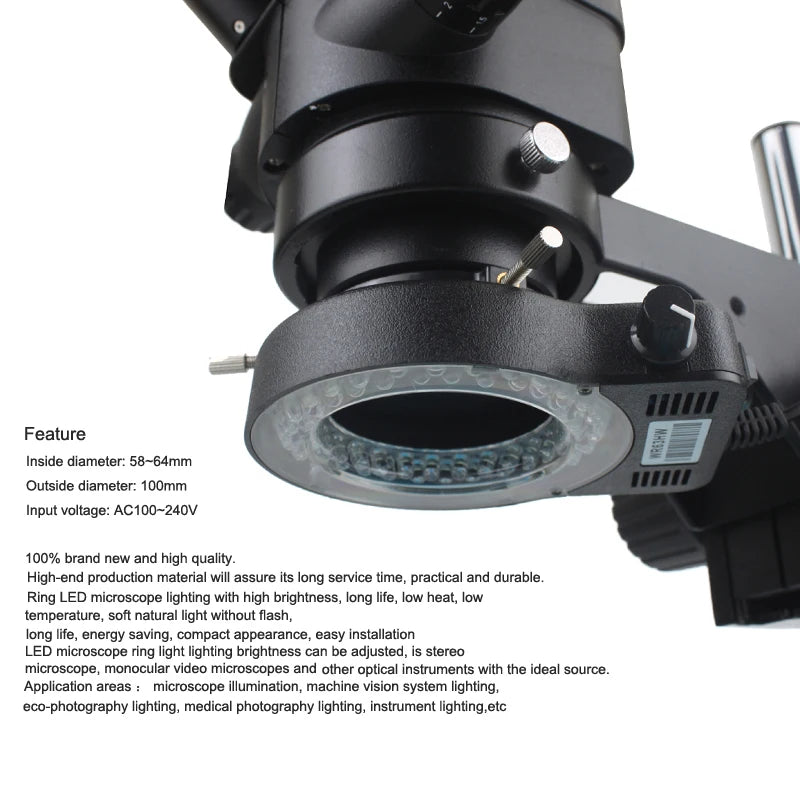

Powerful 56-LED ring light with dimmer

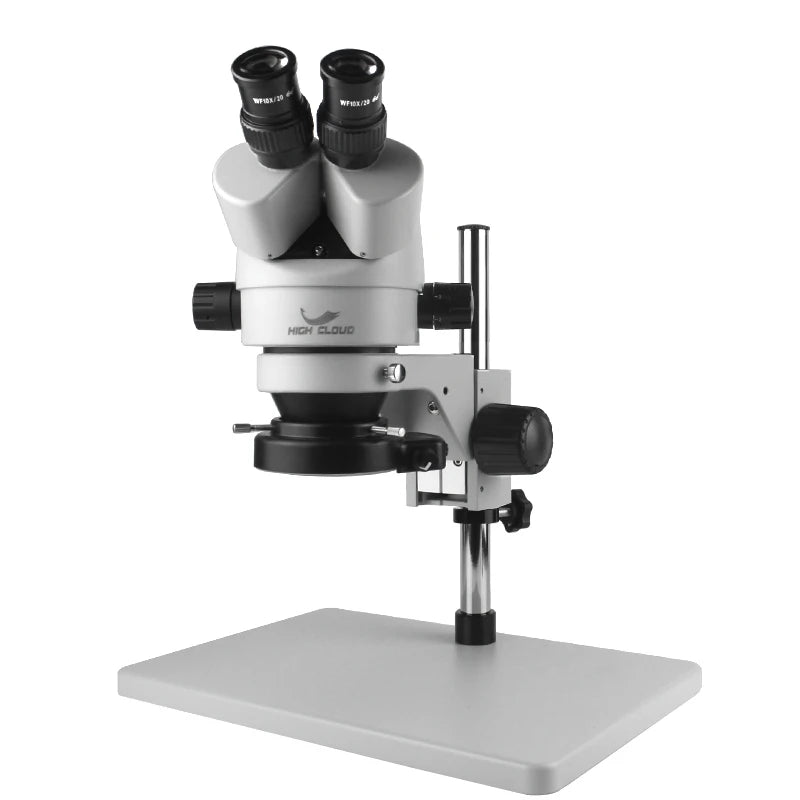

This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists , manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
Key Feature:
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
3.5x-90x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specification:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.67X-4.5X, using the Barlow lenses
Working Distance: 8" (200mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16"-2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg

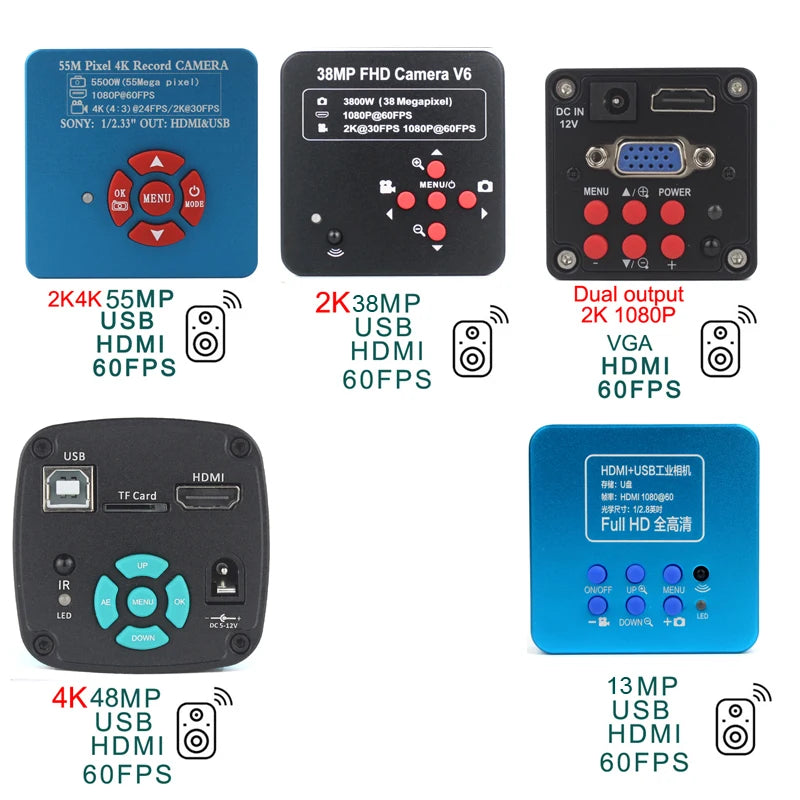

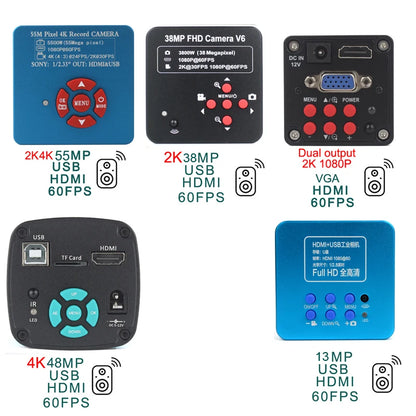

Note: The link has multiple SKU options, each representing a different model of camera.

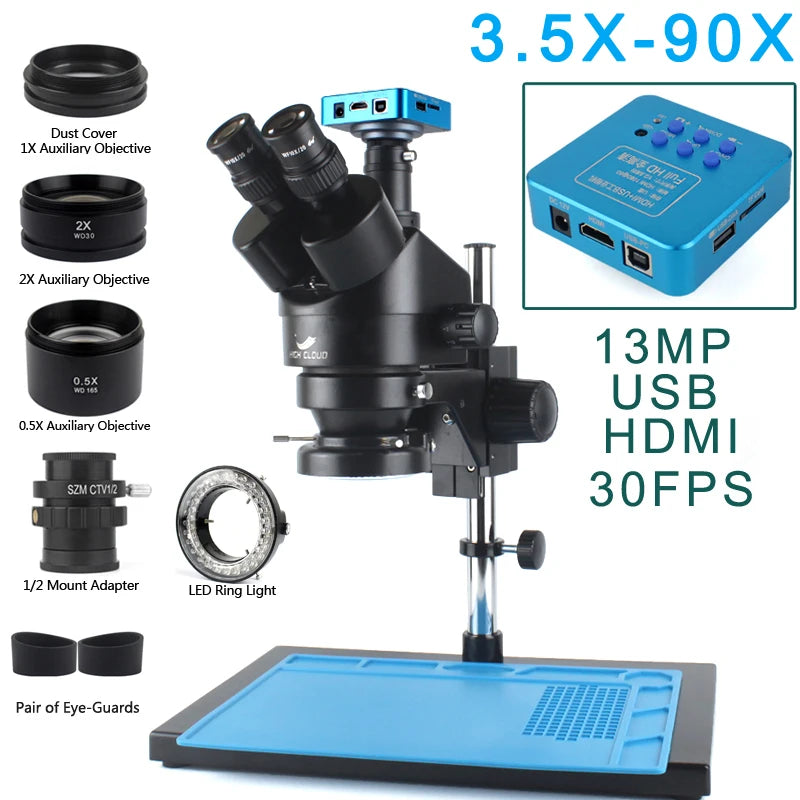

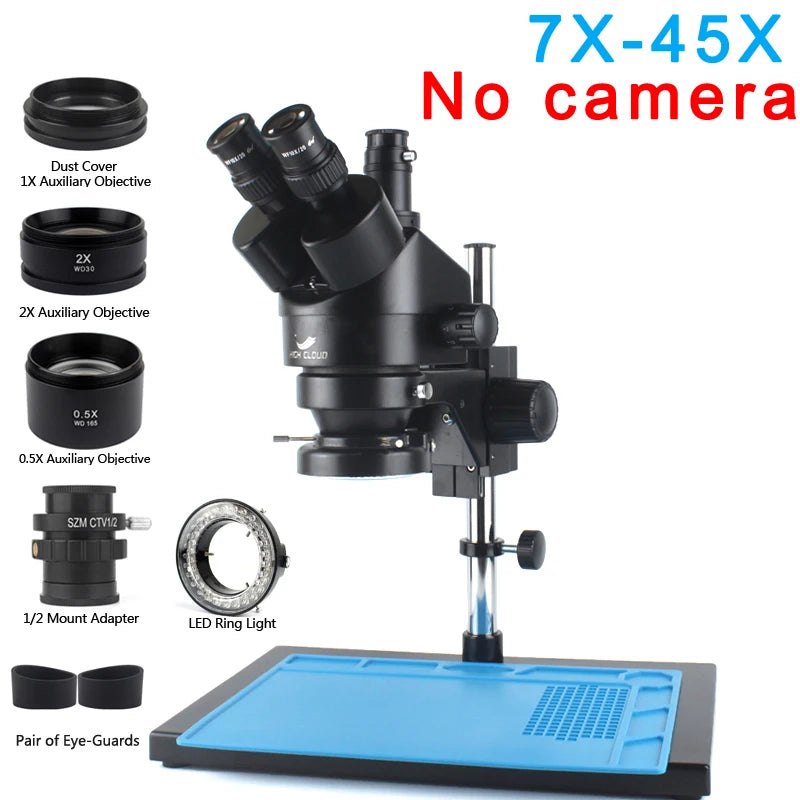

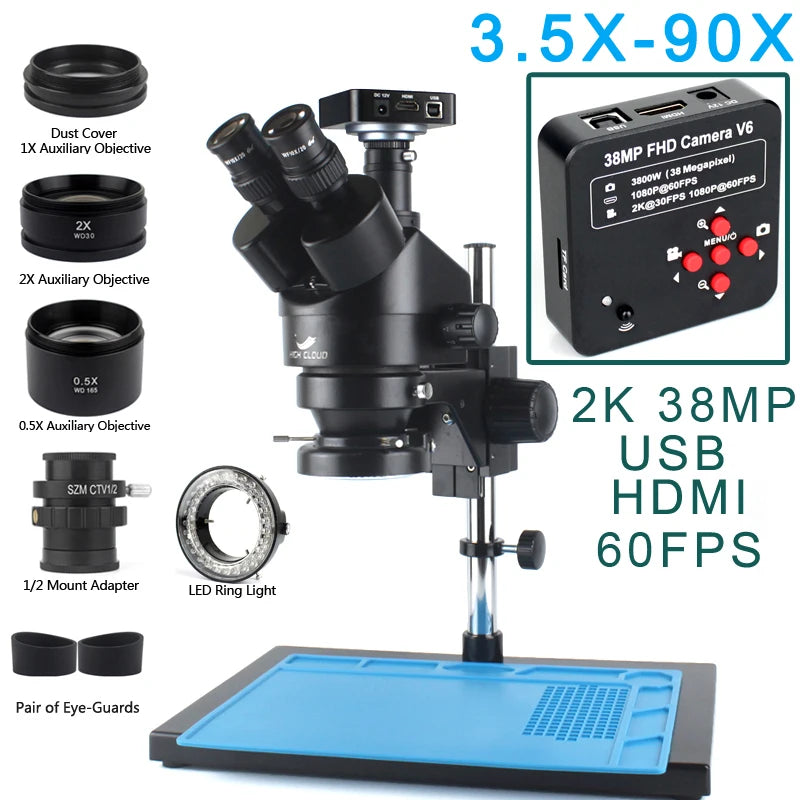

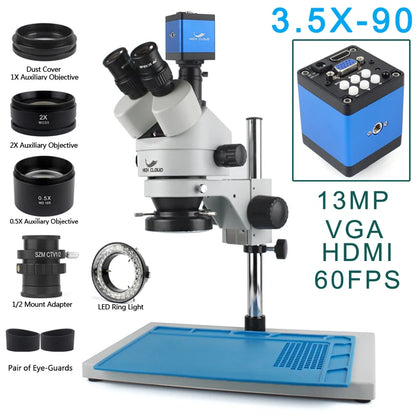

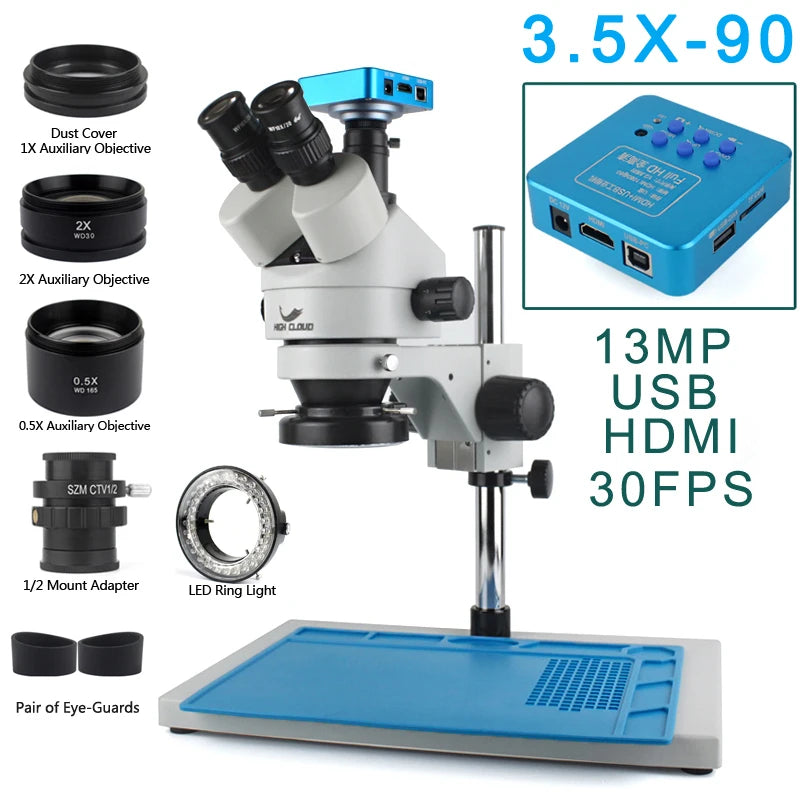

Package Including:

1 x Trinocular Stereo Zoom Head(Working distance is about 10cm)

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x Pair of Eye-Guards

1 x Dust Cover

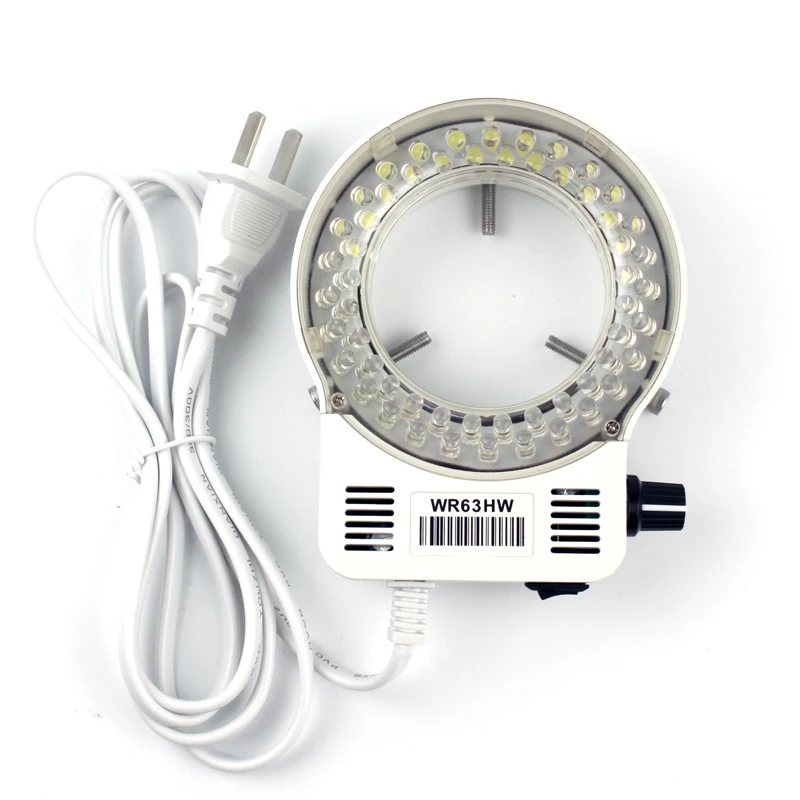

1 x 56-LED Ring Light

1 x Big Stand

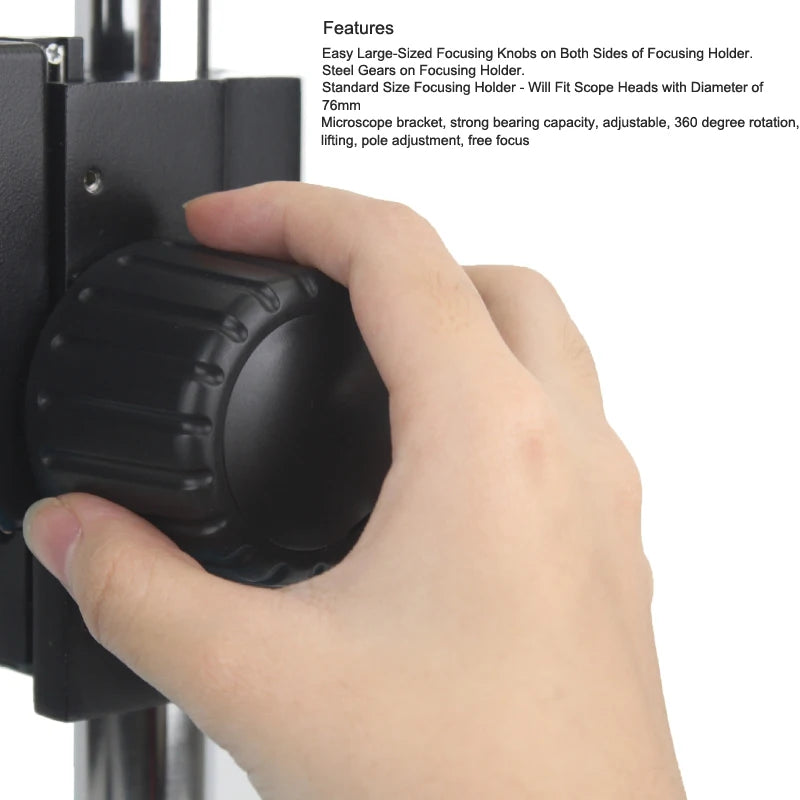

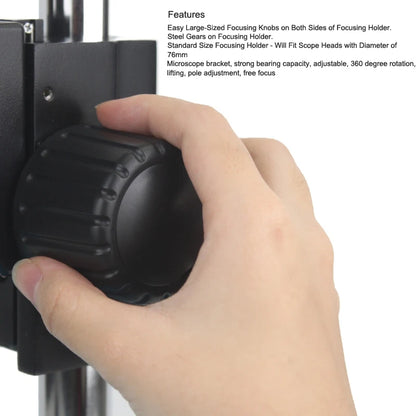

1 x 76mm Focusing Holder

1 x High temperature resistant working pad

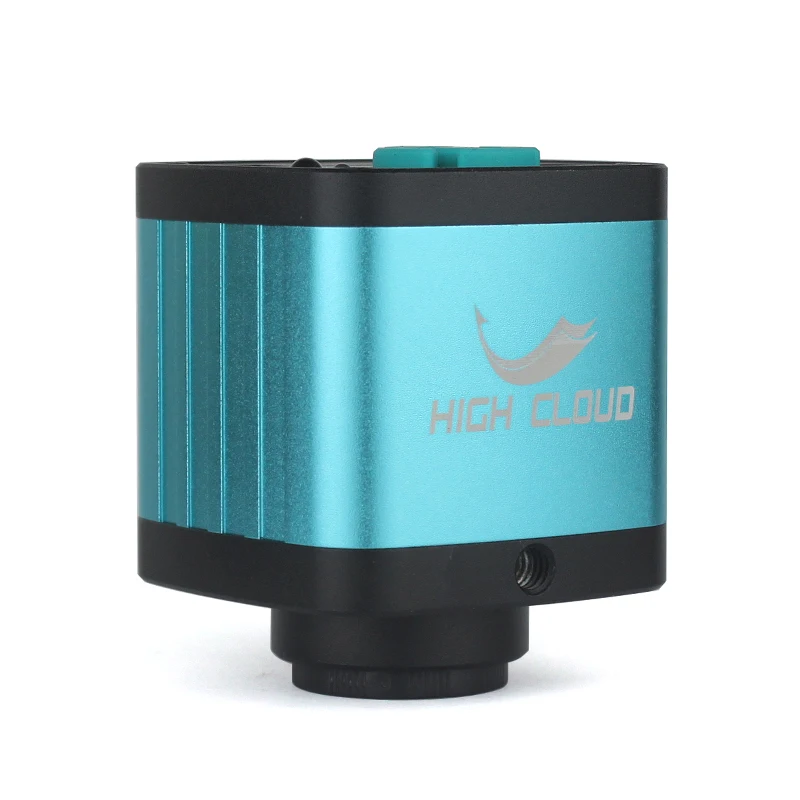

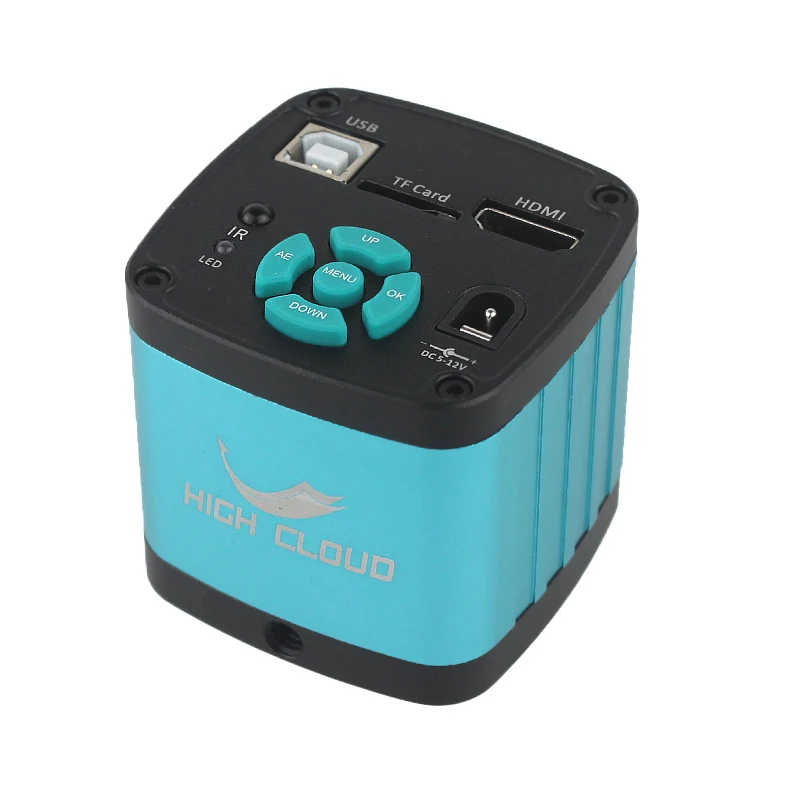

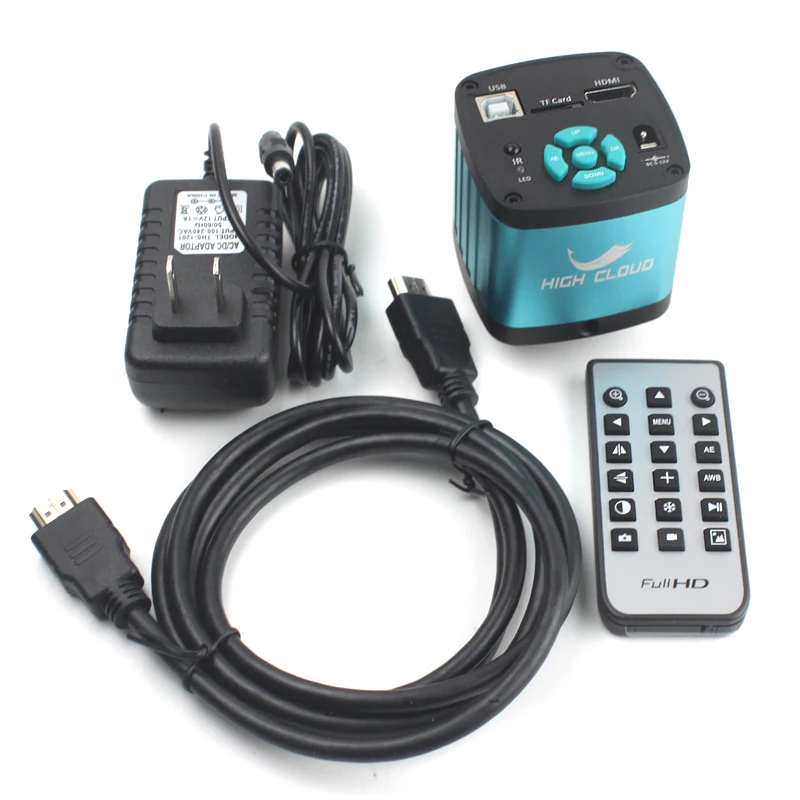

1 x HDMI USB Video Camera

1 x HDMI Cable（6 specifications Optional）

1 x Power Supply Adapter (EU/US)

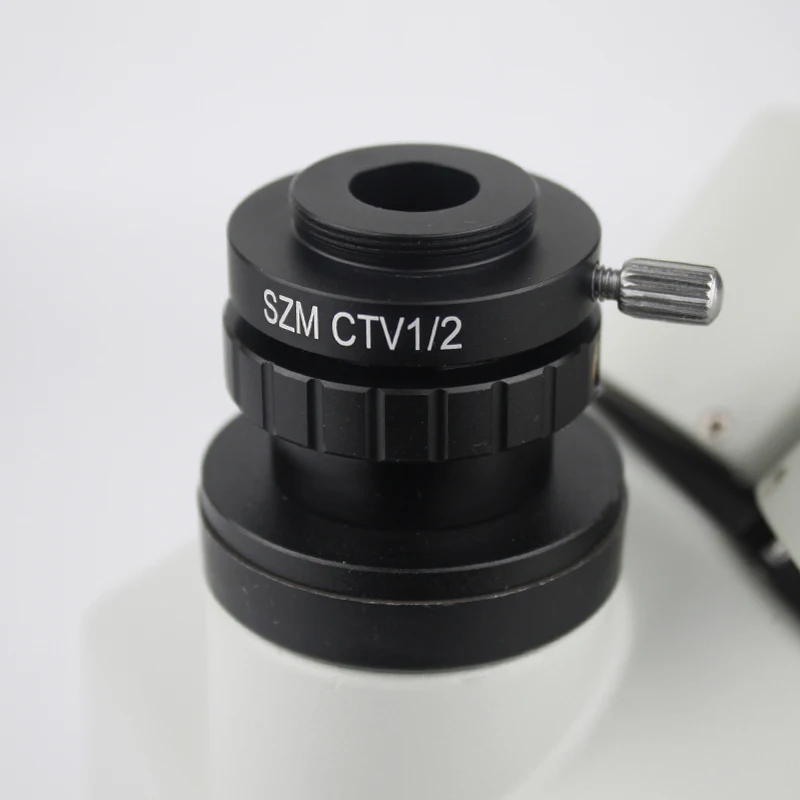

1 x 0.5X C-mount Adapter

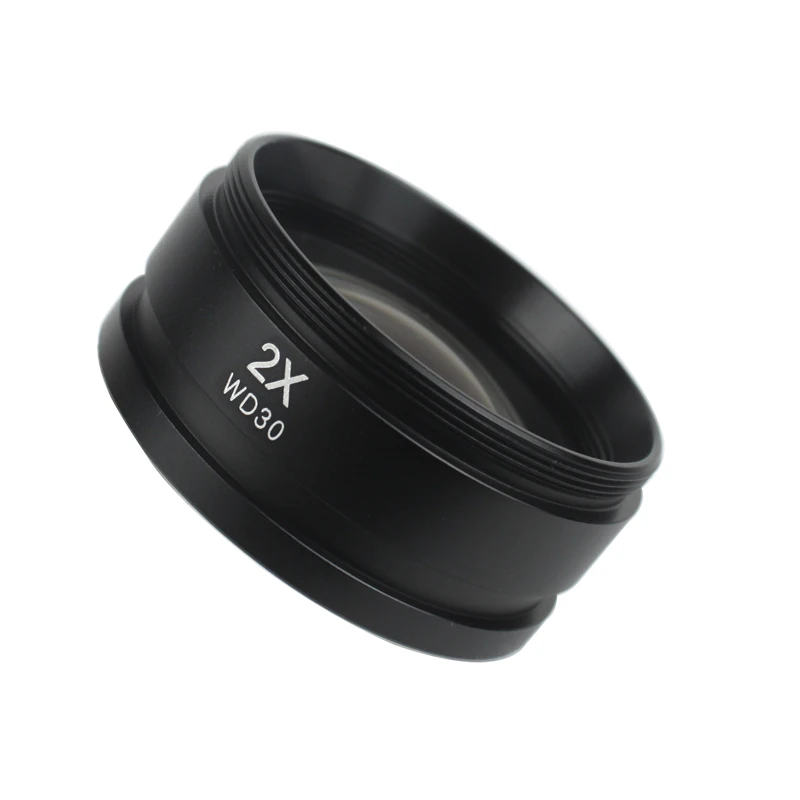

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

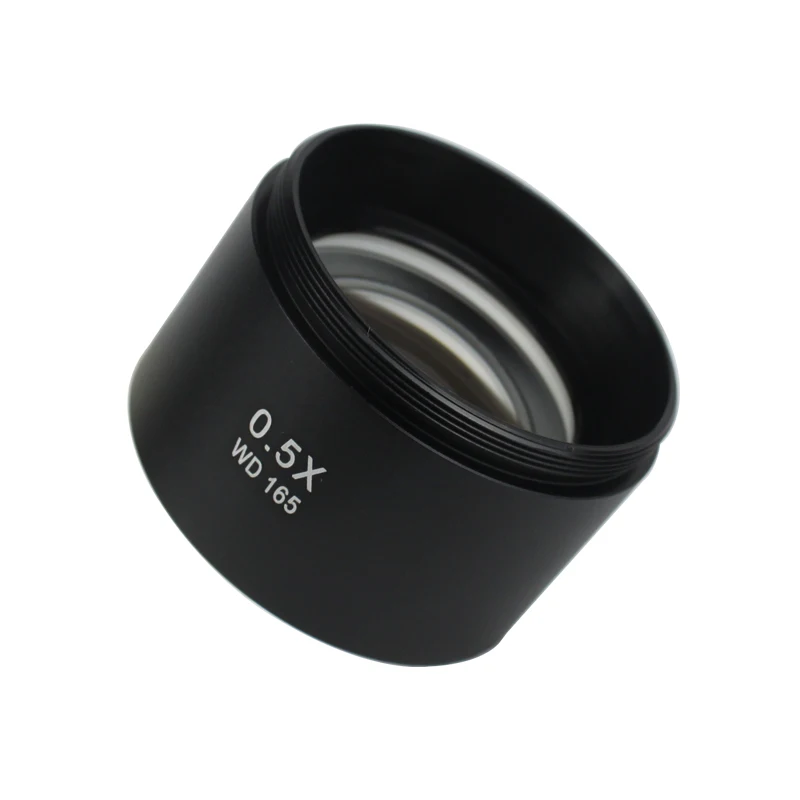

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)

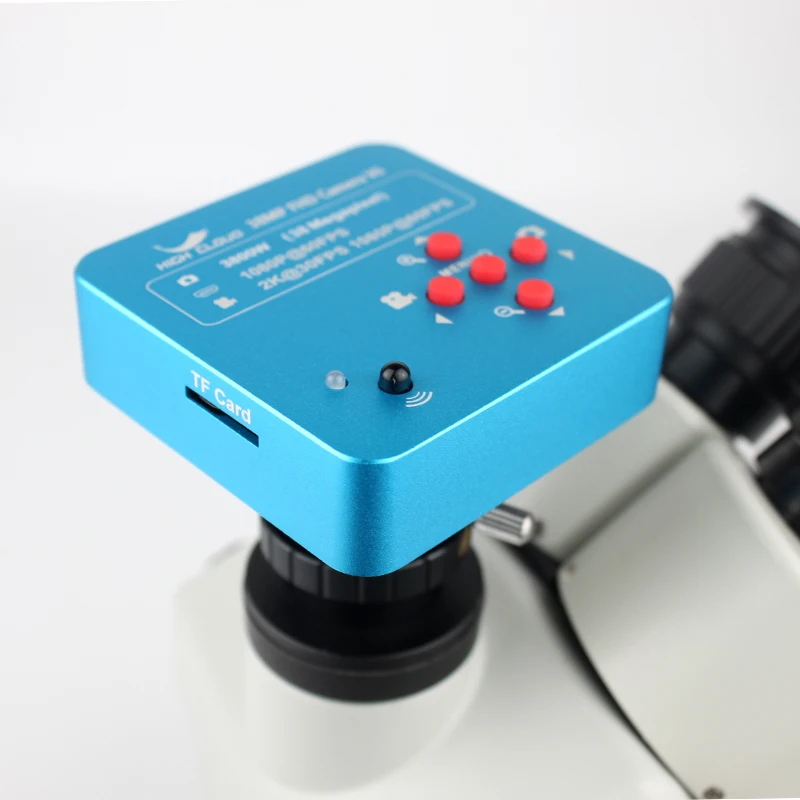

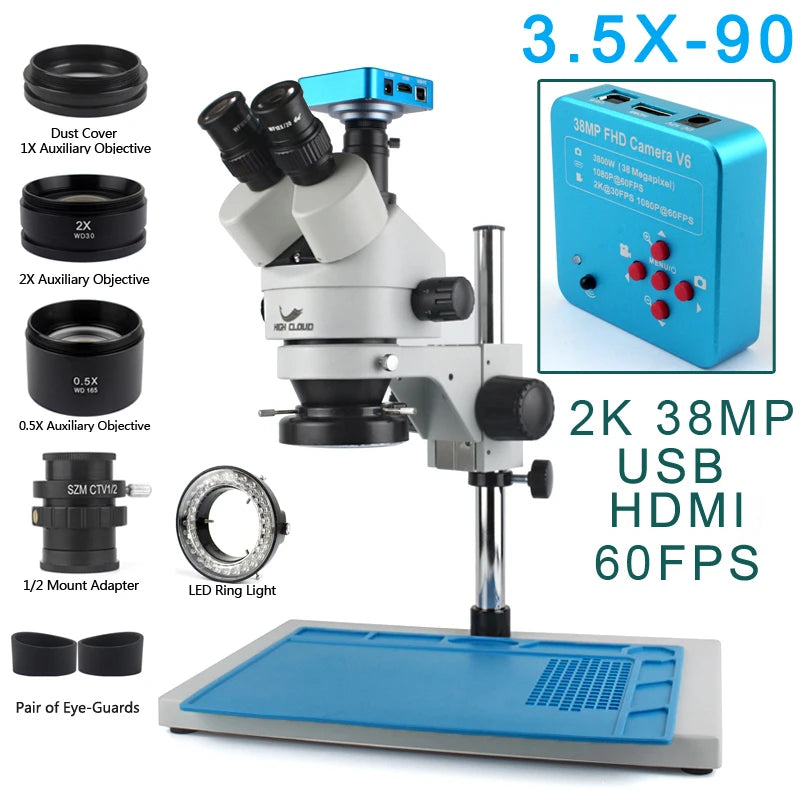

Sensor Panasonic: 38 MegaPixel, 38 million pixels CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm

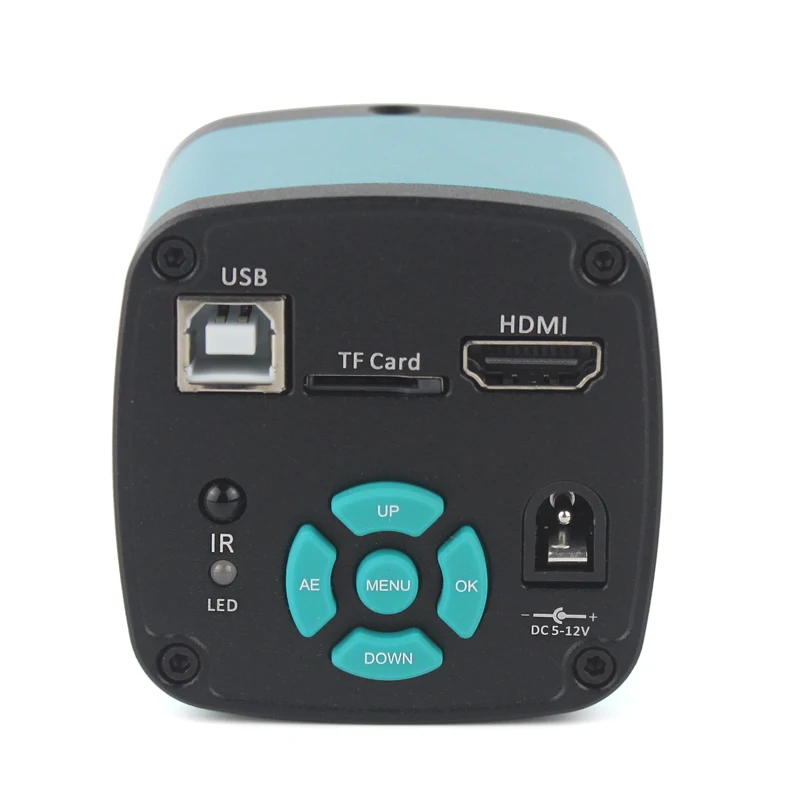

Interface: HDMI(Type A).USB(Type B).TF Card
Image resolution: 21MegaPixel
Video record resolution: 2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free): 1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines: 2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface: C/CS port
Net weight: 180g
Gross weight: 400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

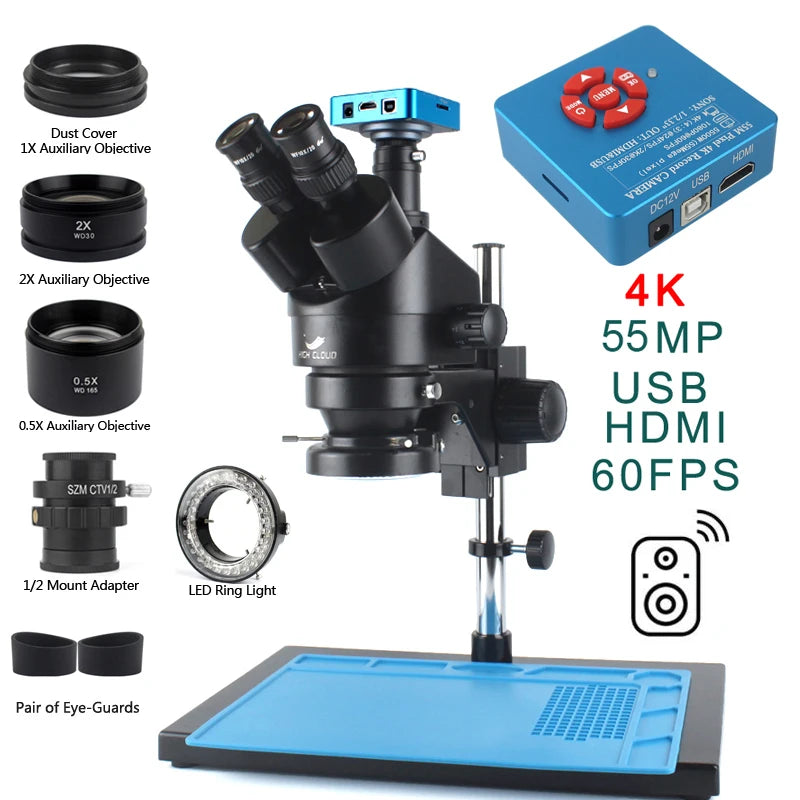

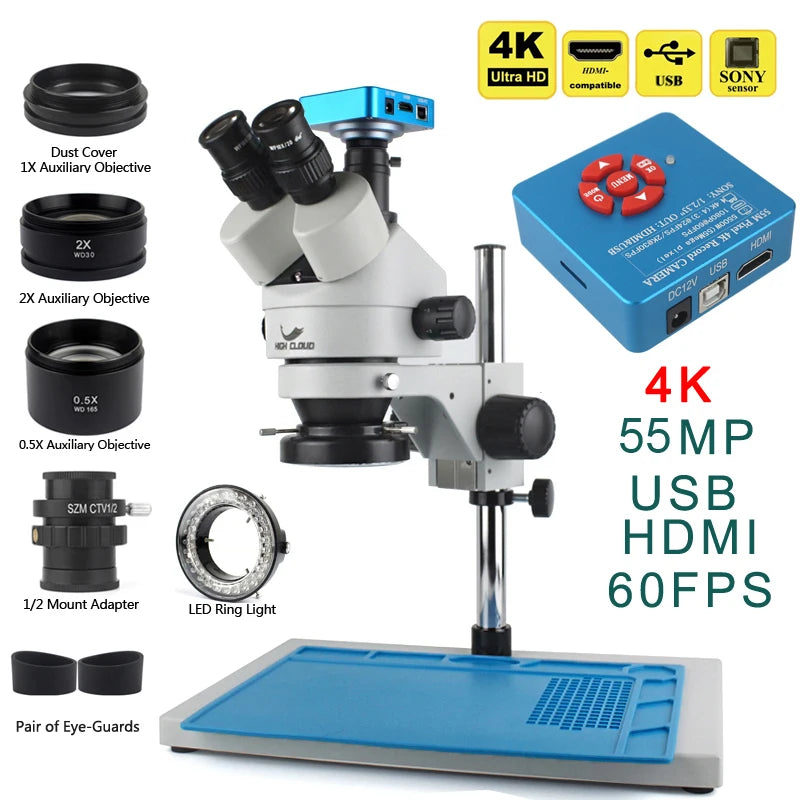

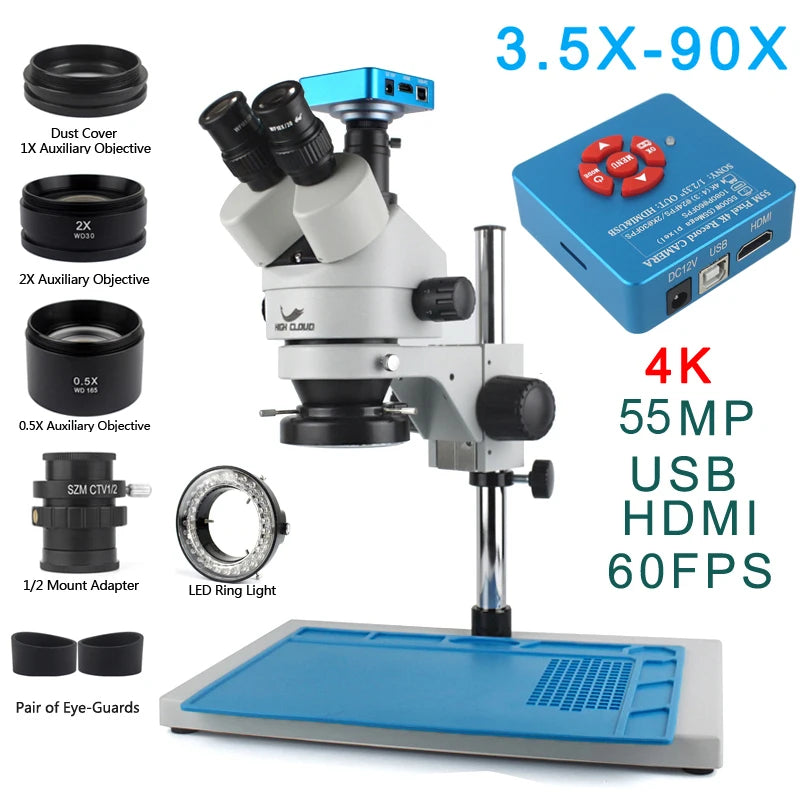

55MP 2K 4K HDMI USB Feature:

Picture Pixel: 9885X5560  55M Pixel  9280X5220  48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY  1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃

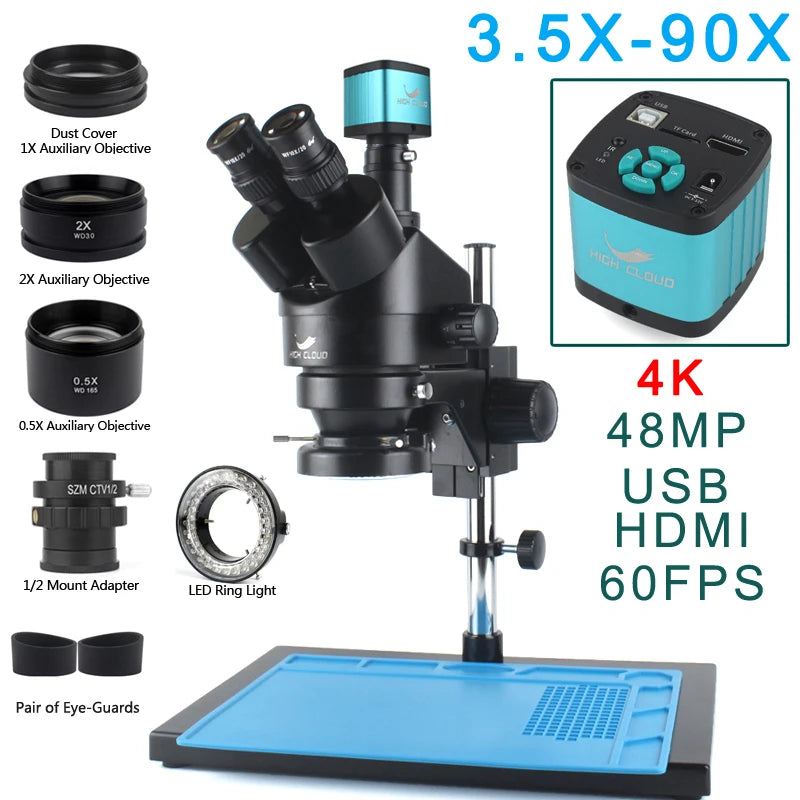

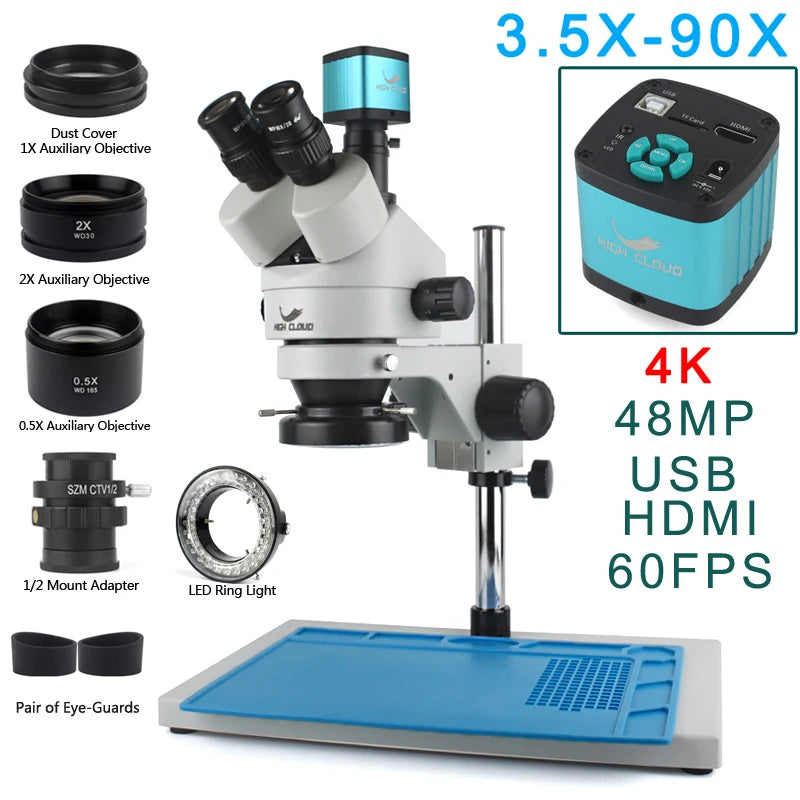

48MP 2K 4K TF HDMI USB Features:

Model: Camera with HDMI USB2.0 two output

Image sensor: 48 megapixel Panasonic sensor

Frame rate: 60F/S @ HDMI output

Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)

Housing: All metal

Support:C-Mount lens

Digital magnification: 5 times digital zoom

White balance: Auto/manual

Cross cursor: Support multi-color, size adjustable

TF card interface: Max 32G

video format:MOV

HDMI interface: HDMI/USB output

Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456

Language:Chinese/English

Mirroring: Support

Frequency:50Hz/60Hz

Monitor:16:9/16:10/4:3

Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

Power supply:5-12V 1A

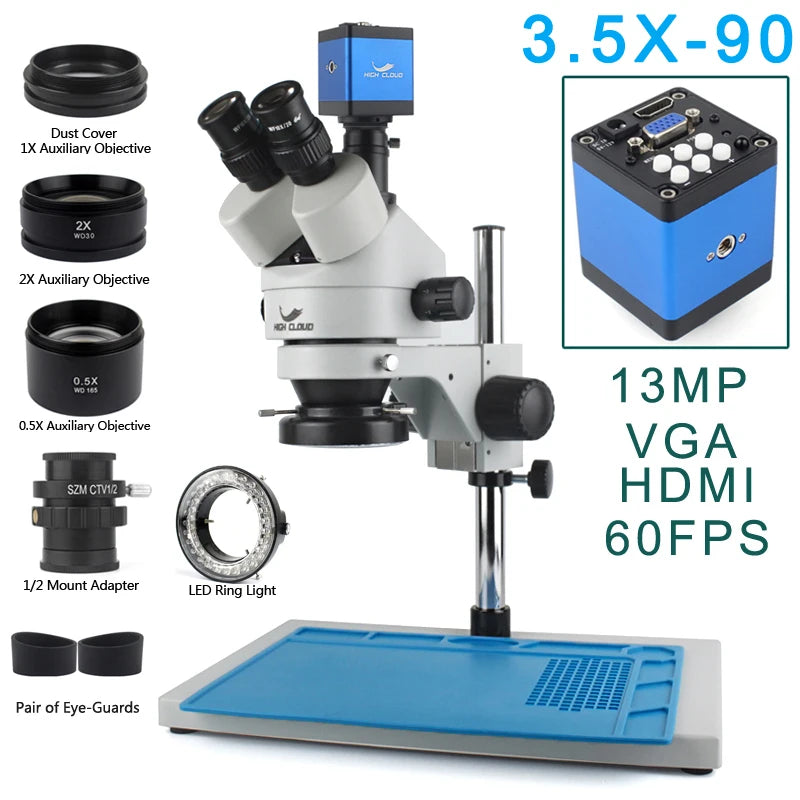

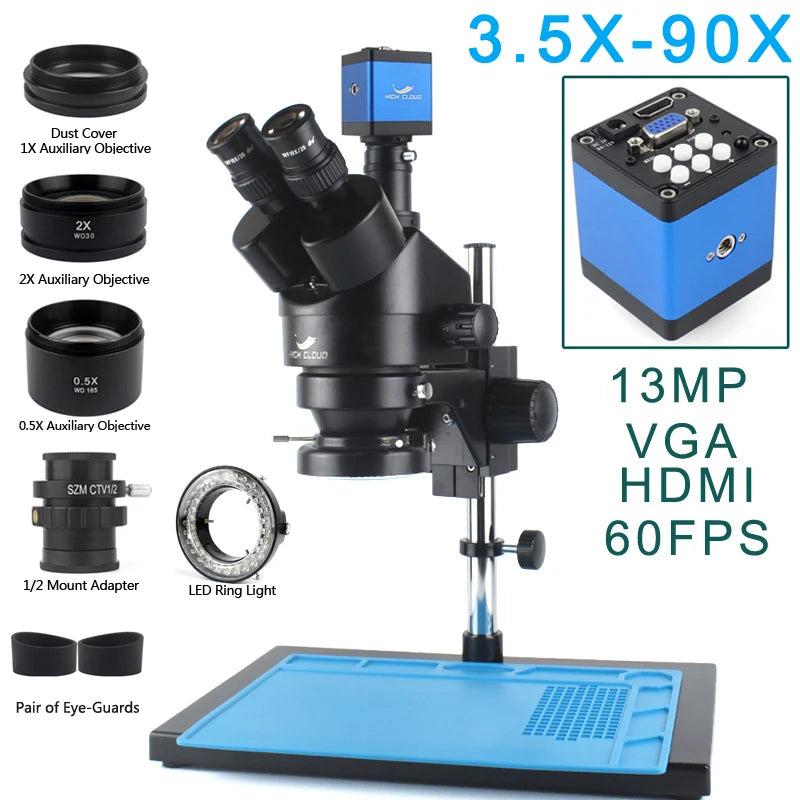

1080P  Camera Supply VGA,HDMI HD Video,Two output ports Meanwhile output
High Quality, High Resolution, Clear Images
1/3" CMOS
1920×1080@60F/S Video Camera
Photo Model / Video Model

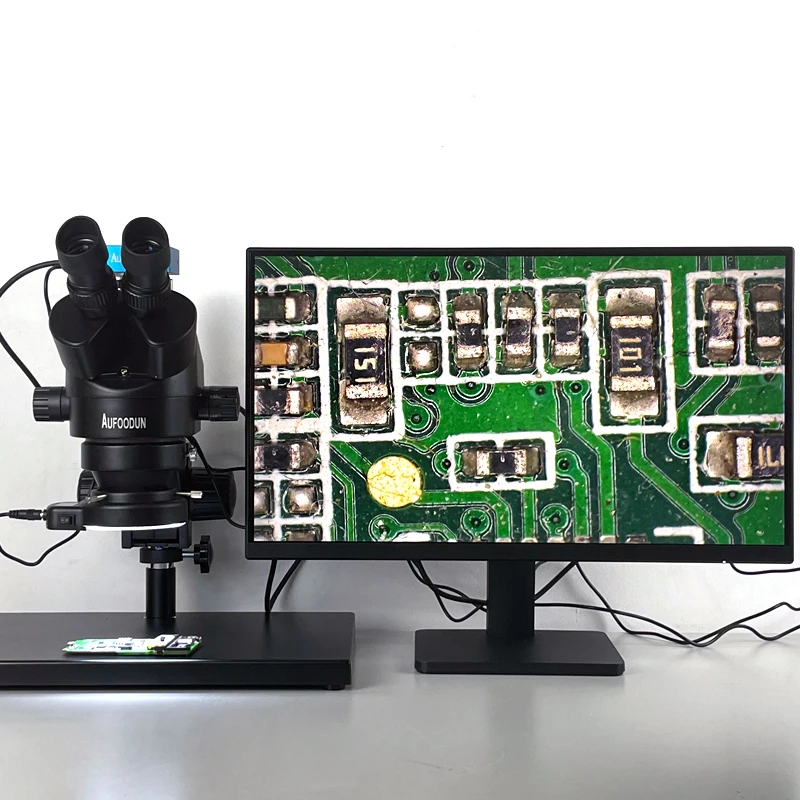

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It build in digital crosshairs and color control, add line in the pictures, Mirror, Rotate, Compare function,Use remote control, easy to operate
Supply VGA,HDMI HD Video,Two output ports Meanwhile output
Specification:
Model: Camera with HDMI VGA two output
Sensor: 1/3 inch
Image resolution: 1920×1080 (for HDMI), 1920×1080 (for VGA)
Video resolution: 1920×1080@ 60F/S
Language: English/Chinese
Crosshair:Can adjust color, line size, hide or display,16 horizontal line , 16 vertical line,any positions
Exposure: automatic exposure
Eliminate reflections: Support
White Balance:one-key white balance, support R/G/B adjustable
Mirroring: Support
Electron zoom:Support 1-4x
Light freqency:50Hz/60Hz
Color:Color/ black and white switching
Monitor:16:9/4:3/16:10
Brightness: 0-100 Adjustable
Contrast: 0-100 Adjustable
Saturation:0-100 Adjustable
Definition: Adjustable
Lens interface: C mount
Remote:infrared remote control
Power:DC 12V/1A

13MP HDMI USB Camera

High Quality, High Resolution, Clear Images

1/2.8"

1080P 1920*1080 Video Camera

HDMI USB Video Model

Added TF card and U disk picture and video storage functions.

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.Can also connect to PC.


Optical format:1/2.8 inch

Housing: Aluminium alloy

Interface:HDMI(Type A).USB(Type B).TF Card,USB Flash Drive

Image resolution:1080P

Video record resolution:1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

HDMI scale:Support 4:3,16:9, screen

USB2.0(Drive free):1920*1080@30FPS1280*720@30FPS640*480@30FPS

TF card:MAX 64GB

USB Flash Drive:MAX 128GB

TF card or U disk format

Digital Zoom:1X-4X

White balance:One key white balance,Manual balance

AWB:WB color correction/Auto/Manual

Sharpness:1-5,Adjustable

Sharpness: 0-10,Adjustable

Noise reduction: 0-10,Adjustable

Avoid flicker: Auto or 50Hz 60Hz

Color:Black and White / color

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

IR remoter:Support

Power supply:12V 1A xc
